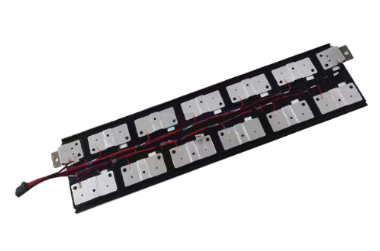

| Name: | Wire Harness CCS (Cell connection system) busbar |
| Isolation board: | fireproof and flame retardant, made of PC+ABS or PA66, etc |
| Acquisition end shell: | pure nickel shell, thin shell wall, fast thermal conduction, good welding penetration effect |
| Busbar: | AL1060,light structure, small impedance and fast heat dissipation |
| Connection and fixation: | laser welding, high automation level |
| Sensitivity and rapid response: | the accuracy of resistance value and B value can reach ±1 respectively |
| Pressure resistance: | 4200VDC |
| NTC: | Built-in high-reliability single-ended resistor, equipped with internal structure technology |
Product Description
Product Advantages:
Material: injection molding or blister isolation board/aluminum bar, etc
Operating temperature range: -50~150°C
Output signal: Analog signal output
Wiring harness: Stable signal transmission
Structure: Flexible structure and support for design changes
Temperature collection: excellent waterproof and moisture-proof performance
Voltage Acquisition: High automation level
Applications
New energy vehicles, new grid energy storage, industrial energy storage, communication energy storage, home storage, mobile portable energy storage, etc
