CCS (Cells Connection System): The Connections that Power our Devices

• 2023-12-12

CCS (Cells Connection System): The Connections that Power our Devices

Summarized by Jade thermalloy,2023/12

CCS, or Cells Connection System, is the magician behind the curtain of our modern electronic world. Without it, our smartphones, tablets, laptops, and even electric vehicles would be a heap of disconnected parts.

The principle behind CCS is as simple as it is ingenious - it's the ability to forge connections between multiple cells or modules and turn them into a beautiful electronic symphony. These connections, usually made of a conductive material like copper or gold, are like the neural networks of our electronic devices, allowing electricity and information to flow freely.

When it comes to CCS products, there are three main types: the Stacked Cell Connection System (SCCS), the Side-by-Side Connection System (SSCS), and the Flip-Chip Connection System (FCCS).

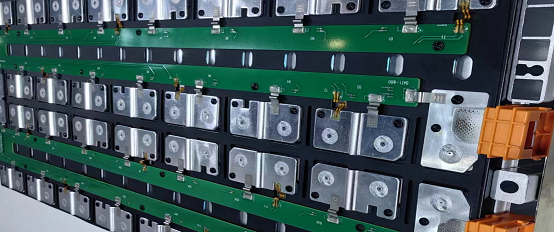

(PCB CCS_JADE)

The SCCS is like a vertical stack of cells or modules. It may require more brainpower to manufacture, but it's a compact and efficient solution. The SSCS, on the other hand, is like a parallel processing system. It's easy to manufacture but may require more space. The FCCS uses solder bumps to connect the cells or modules directly to the substrate. It's a direct connection that provides high electrical and thermal conductivity, but it can be more susceptible to mechanical stress.

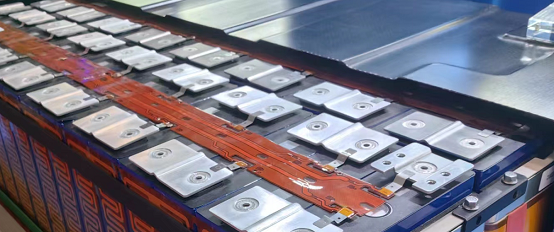

(FPC CCS_JADE)

The manufacturing process of CCS products involves several steps, including fabricating the cells or modules, designing and manufacturing the interconnections, assembling the cells or modules, and testing and validating the final product.

So where does CCS show its stuff? Well, just about everywhere! The electronics industry uses it to connect components in smartphones, tablets, laptops, and servers. Automotive applications benefit from it in battery packs and other components for improved performance and energy density. Even aerospace and defense industries find it useful for connecting electronic components in aircraft, satellites, and defense vehicles. And let's not forget energy - CCS is employed to connect battery cells in electric vehicles and energy storage systems for efficient energy distribution and management.

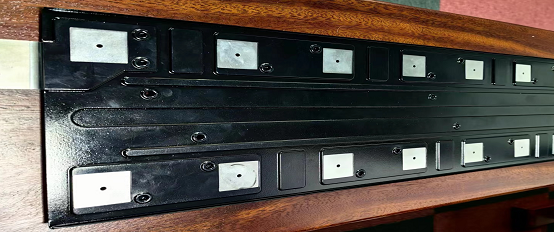

(Plastic Tray CCS_JADE)

CCS is like the superglue of our electronic world, keeping everything connected and functioning seamlessly. Without it, our devices would be like a bundle of wires, hopelessly lost and disconnected. So next time you pick up your smartphone or charge your electric vehicle, remember to give a little thank you to CCS for making it all possible!
