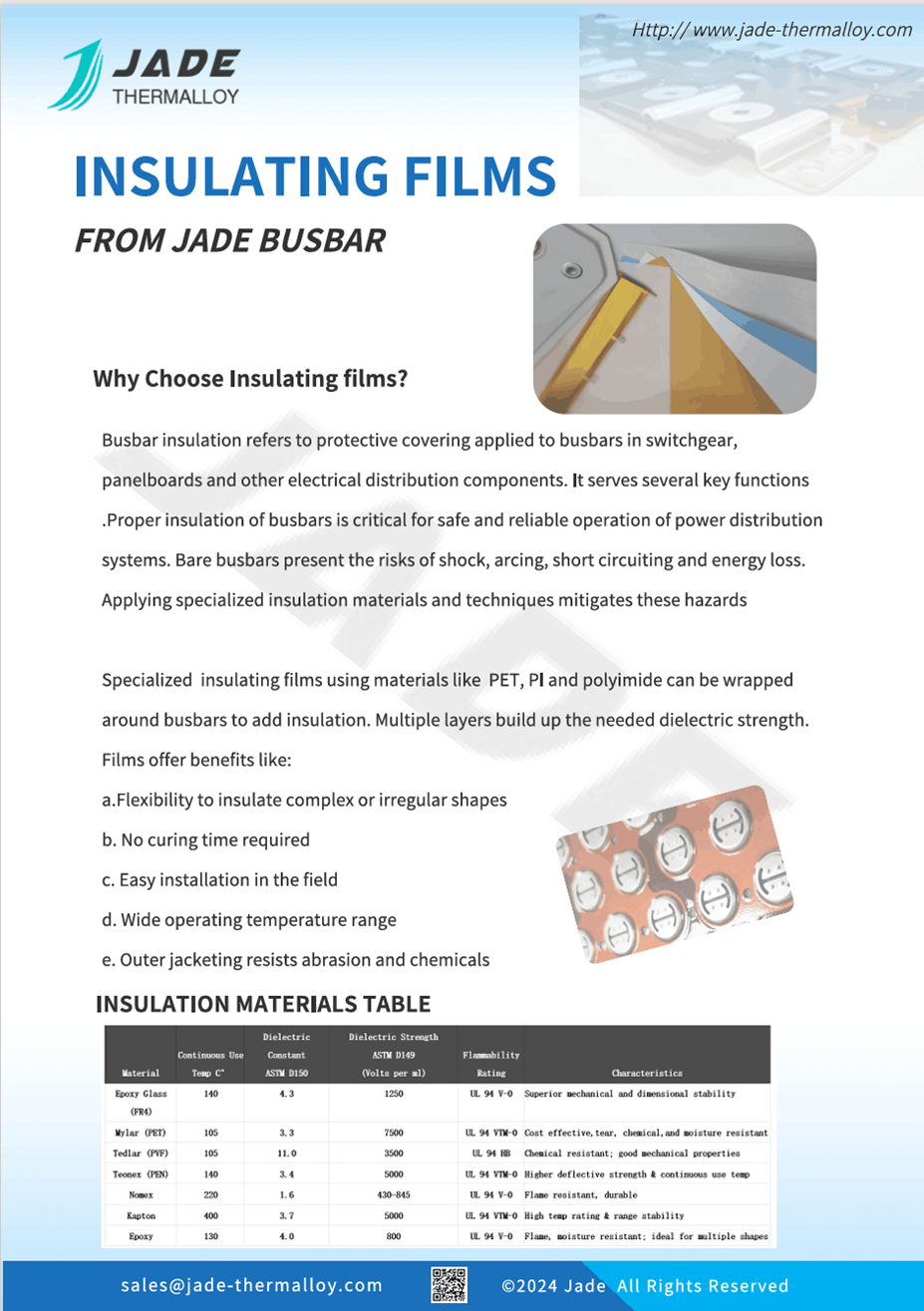

Jade publish the official Tech presentation for Busbar insulating films

• 2024-01-20

Bus bar laminations reduce inductance. This is achieved by passing current bi-directionally through laminated conductor sheets, thereby cancelling the induced magnetic fields, and the inductive reactance. By laminating the conductors together, separated by only a thin insulator, or insulating film, conductors can be positioned as close as .005” apart, maximizing the mating surfaces of the conductors. By reducing the thickness and increasing the width of the conductors, mating surface geometry can be increased. This significantly reduces inductance and increases capacitance. By increasing the capacitance, the material characteristic impedance can be reduced. This has the effect of ultimately reducing signal noise and conductor crosstalk.
